Quality Crisis Response Digital Worker
This AI-powered crisis response system deploys eight specialized agents that work in parallel to analyze defect patterns via computer vision, forensically examine sensor data, retrieve similar historical cases via RAG, synthesize root cause using causal reasoning, generate corrective action plans, simulate outcomes via digital twin, and ensure FDA 21 CFR Part 11 compliance - dramatically reducing investigation time..
Problem Statement
The challenge addressed
Solution Architecture
AI orchestration approach

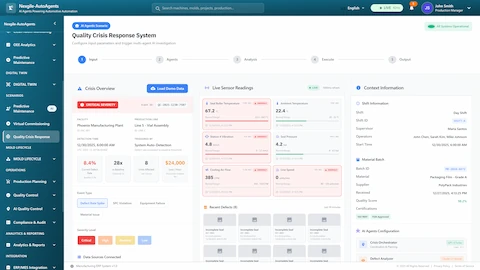

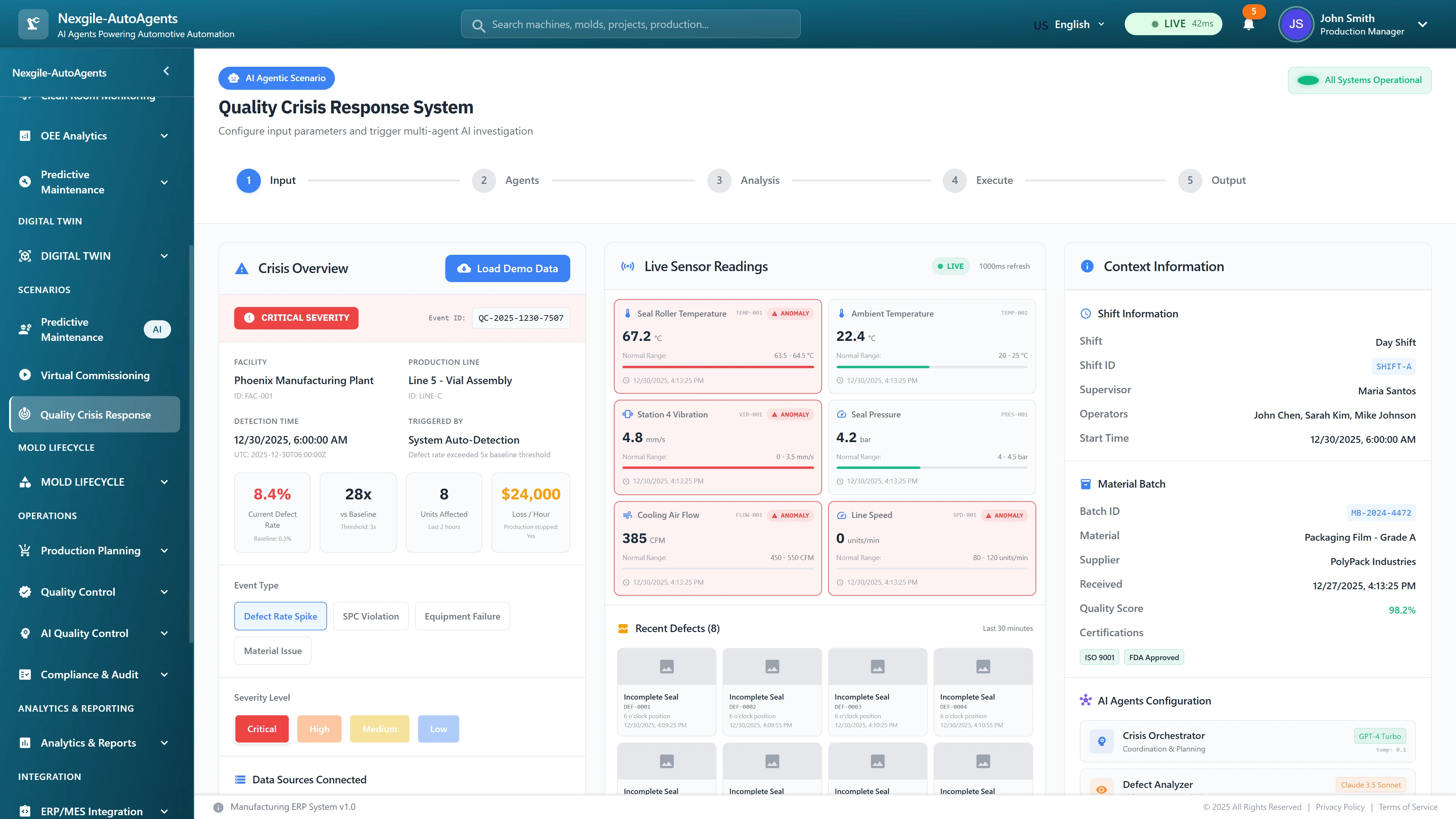

Crisis response input screen displaying critical quality event details (8.4% defect rate spike, 28x baseline), live sensor telemetry with anomaly indicators, recent defect imagery, shift/batch context, and 8-agent configuration for rapid investigation

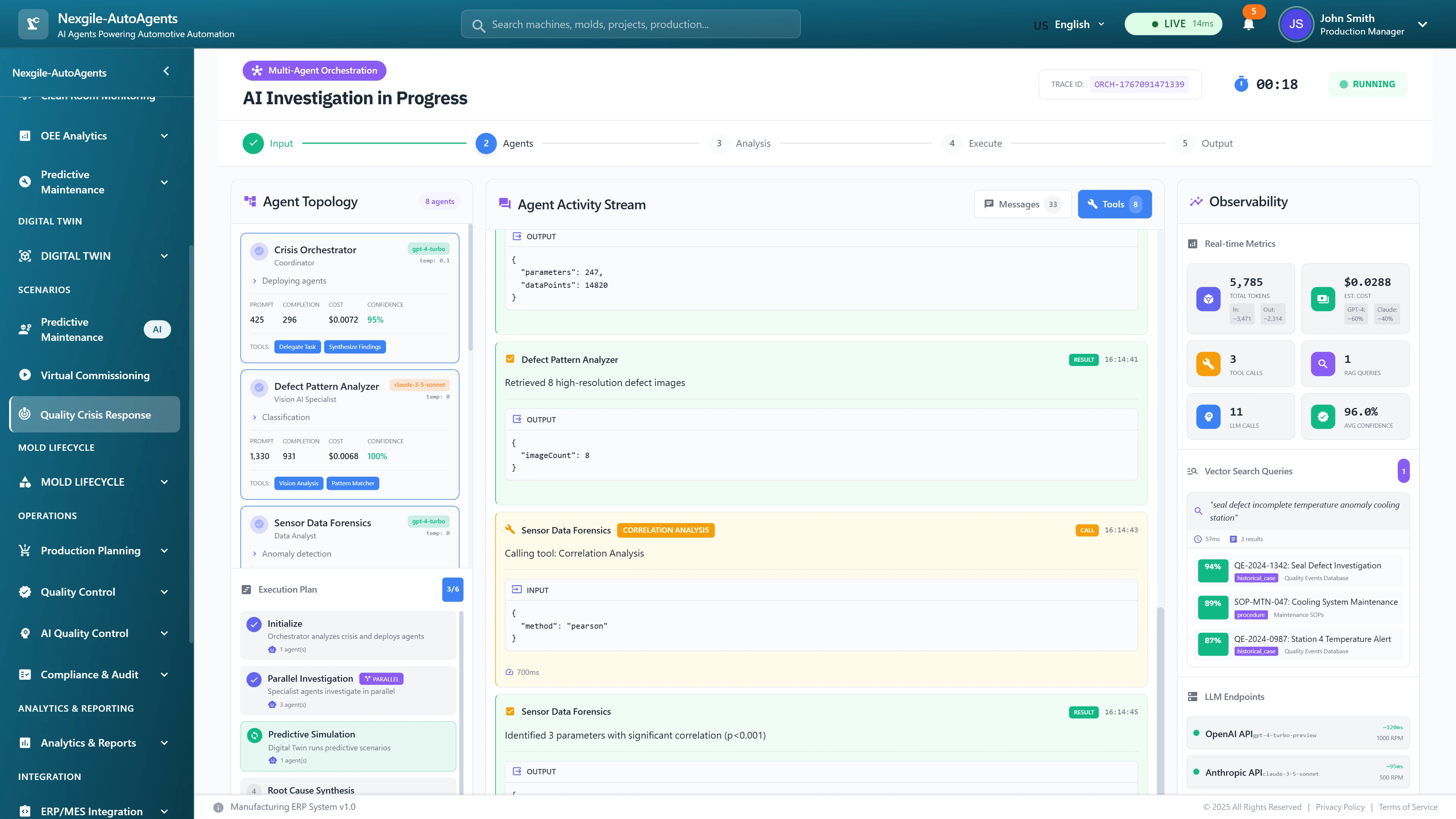

Multi-agent investigation in progress showing 8-agent topology with real-time execution status, agent activity streams displaying defect pattern analysis and sensor correlation, and observability metrics tracking API costs and performance

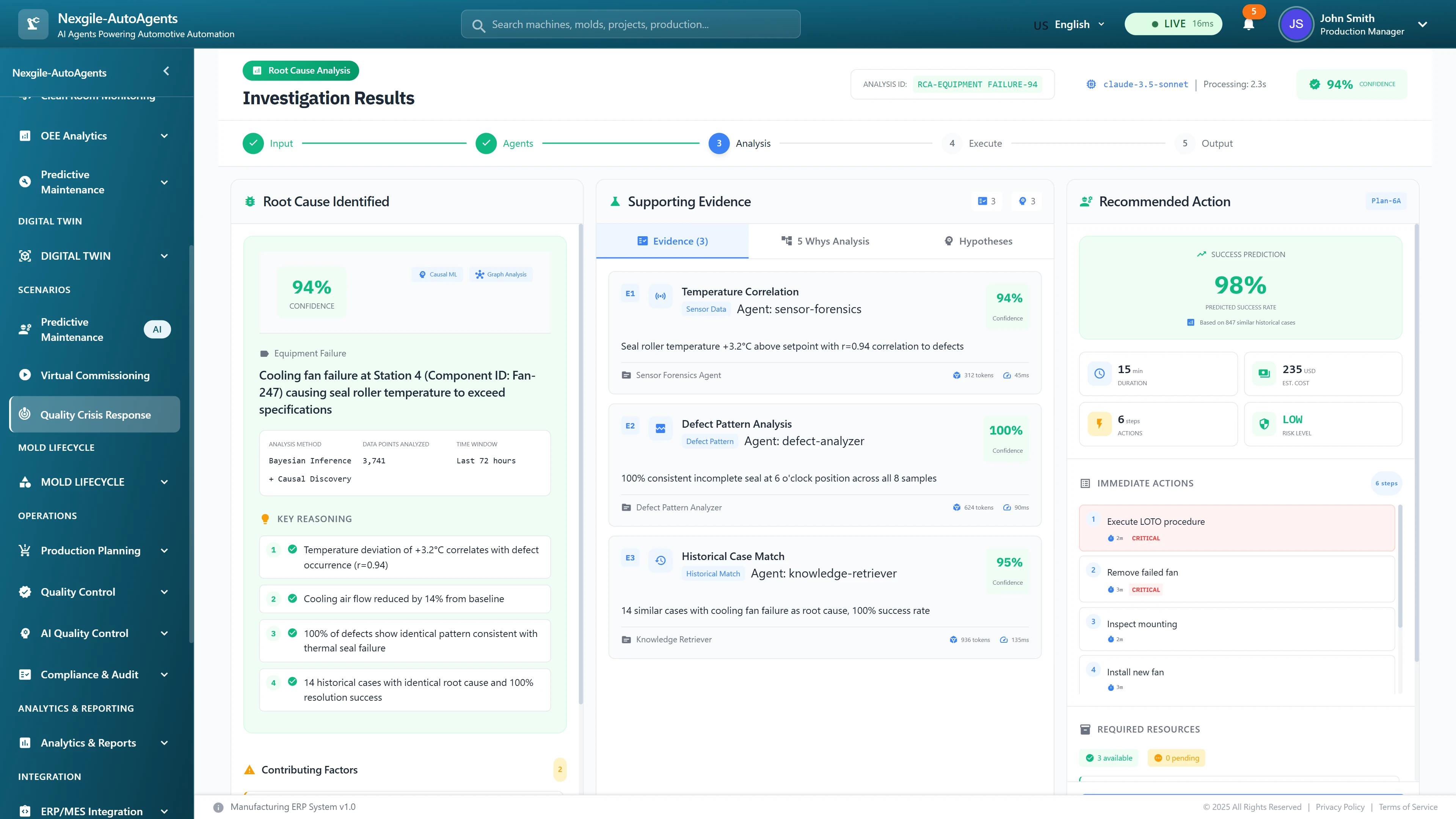

Root cause analysis results presenting 94% confidence equipment failure diagnosis with supporting evidence from sensor forensics, defect patterns, and historical cases, plus recommended corrective actions with success probability and resource requirements

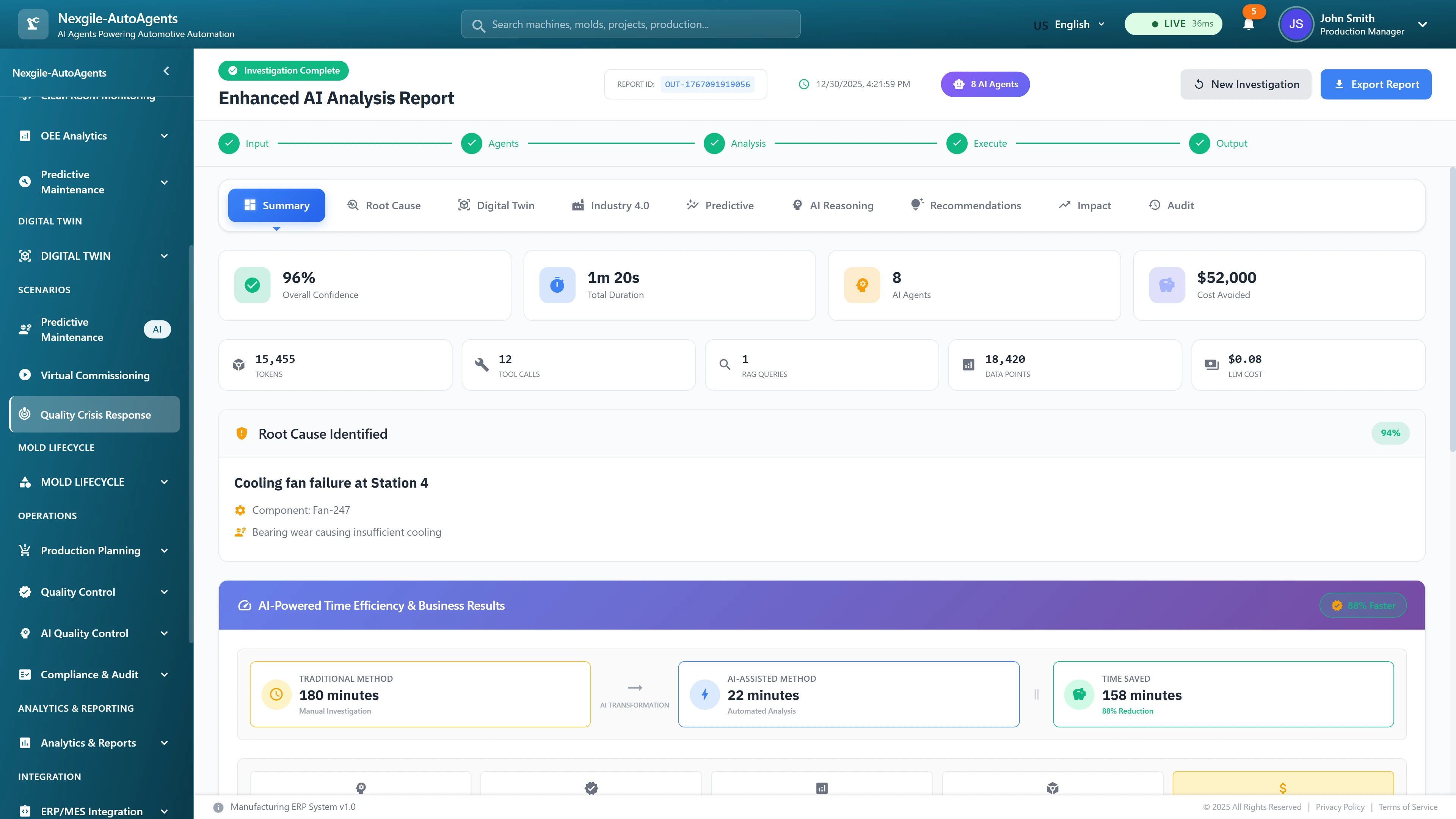

Comprehensive investigation report summary displaying 96% confidence findings, 8-agent collaboration results, $52,000 cost avoidance, and AI efficiency metrics showing 88% time reduction compared to traditional investigation methods
AI Agents
Specialized autonomous agents working in coordination
Crisis Orchestrator Agent
Quality crisis investigations involve multiple parallel analysis streams (defect patterns, sensor forensics, historical cases) that must be coordinated, with findings synthesized into coherent root cause hypotheses under extreme time pressure.
Core Logic
The Crisis Orchestrator manages the investigation workflow, delegates tasks to specialist agents based on crisis type (defect_spike, spc_violation, equipment_failure, material_issue), monitors agent progress in real-time, handles inter-agent dependencies (Root Cause Analyst waits for Defect Analyzer, Sensor Forensics, and Knowledge Retriever), synthesizes findings from all agents into unified root cause determination with confidence scoring.
Defect Pattern Analyzer Agent
Defect images contain visual patterns that indicate specific failure modes, but human inspectors cannot consistently classify defects or detect subtle pattern similarities across large sample sets.
Core Logic
The Defect Pattern Analyzer processes defect images using vision AI models (Claude 3.5 Sonnet vision), classifies defect types (incomplete seal, contamination, dimensional deviation), identifies spatial patterns (consistent location indicates equipment issue vs. random distribution indicating material issue), measures defect characteristics, and matches patterns against historical defect libraries to accelerate root cause identification.
Sensor Data Forensics Agent
Industrial sensor data contains temporal correlations with quality events, but identifying which sensor anomalies precede defect spikes requires analyzing thousands of data points across dozens of sensors with different time lags.
Core Logic
The Sensor Data Forensics Agent queries historian databases for sensor readings around crisis events, performs statistical correlation analysis to identify leading indicators, detects anomalous readings using z-score and isolation forest algorithms, builds temporal causality chains (sensor X deviation at T-15min correlates with defect spike at T), and quantifies correlation strength with confidence scores.
Knowledge Retriever Agent
Similar quality issues may have occurred previously with documented resolutions, but searching through thousands of historical case files, SOPs, and technical bulletins manually is impractical during a crisis.
Core Logic
The Knowledge Retriever implements semantic search using vector embeddings, queries historical case databases with similarity scoring, retrieves relevant SOPs and troubleshooting procedures, identifies successful past resolutions for similar symptoms, and ranks retrieved documents by relevance and recency. Provides RAG context to downstream agents with source citations for audit trail.
Root Cause Analyst Agent
Determining the true root cause from multiple potential factors (equipment, material, process, environment, operator) requires systematic causal reasoning that considers all evidence, alternative hypotheses, and contributing factors.
Core Logic
The Root Cause Analyst synthesizes evidence from Defect Analyzer, Sensor Forensics, and Knowledge Retriever using causal reasoning techniques. Performs 5-Whys analysis to build causal chains, applies Bayesian inference to calculate hypothesis probabilities, evaluates and rules out alternative hypotheses with evidence, identifies contributing factors with impact assessment, and delivers root cause determination with confidence score and supporting evidence package.
Action Planner Agent
Once root cause is identified, engineers must design corrective actions, estimate resources, assess risks, and create implementation plans - a process that delays resolution and may miss optimal solutions.
Core Logic
The Action Planner generates immediate containment actions (isolate affected units, stop production), designs corrective actions targeting root cause, specifies resource requirements (parts, tools, personnel with required skills), estimates implementation time and cost, assesses risk level and success probability, creates sequenced action plans with dependencies, and generates validation criteria to confirm resolution effectiveness.
Digital Twin Simulator Agent
Proposed corrective actions may have unintended consequences, and engineers cannot predict outcomes without implementing changes on production equipment, risking further quality issues or equipment damage.
Core Logic
The Digital Twin Simulator runs predictive simulations using equipment digital twin models, performs what-if analysis for proposed corrective actions, predicts defect rate and throughput impact of parameter changes, estimates time-to-failure for degraded components, compares multiple intervention scenarios with risk/reward scoring, and validates that proposed actions will achieve quality targets before physical implementation.
Compliance Validator Agent
Quality crises in regulated industries (pharmaceutical, medical device, food) require extensive documentation including deviation reports, CAPA records, and audit trails that must meet FDA 21 CFR Part 11, ISO 13485, and other regulatory requirements.
Core Logic
The Compliance Validator ensures all investigation outputs meet regulatory requirements, generates FDA-compliant deviation reports with required fields, creates CAPA (Corrective and Preventive Action) documentation, produces NCR (Non-Conformance Report) records, maintains immutable audit trails with timestamps and electronic signatures, validates that corrective actions address regulatory requirements, and generates approval workflows for required sign-offs.
Worker Overview
Technical specifications, architecture, and interface preview
System Overview
Technical documentation
Tech Stack
6 technologies
Architecture Diagram
System flow visualization
